HP Carbide Cutter - Pear, Medium, Cross Cut - C.77K

HP Carbide Cutter - Pear, Medium, Cross Cut - C.77K

Regular price $12.95 USD
Regular price Sale price $12.95 USD
Sale Sold out
Diameter

HP carbide pear cutter C.77K uses medium cross-cut geometry for controlled trimming, shaping and material reduction on CoCr, NiCr, base-metal casting alloys and non-precious RPD frameworks, as well as PMMA denture-base resin, tray acrylic, CAD/CAM PMMA and bis-acryl provisional composite.

The pear form blends rounded access with controlled wall shaping in narrow areas and concave transitions. The tungsten carbide head and stable rotary design support efficient, controlled cutting performance in dental laboratory workflows.

  • Origin: Frank Dental, Germany
  • Shank: HP (2.35 mm)
  • Material: Tungsten Carbide
  • Shape: Pear
  • Grade: Medium
  • Blade pattern: Cross Cut
  • Color band: Blue
  • Pack size: 1 piece


Available in the following configurations:

Order
code
SKU Diameter Head
length
Max.
RPM
ISO
number

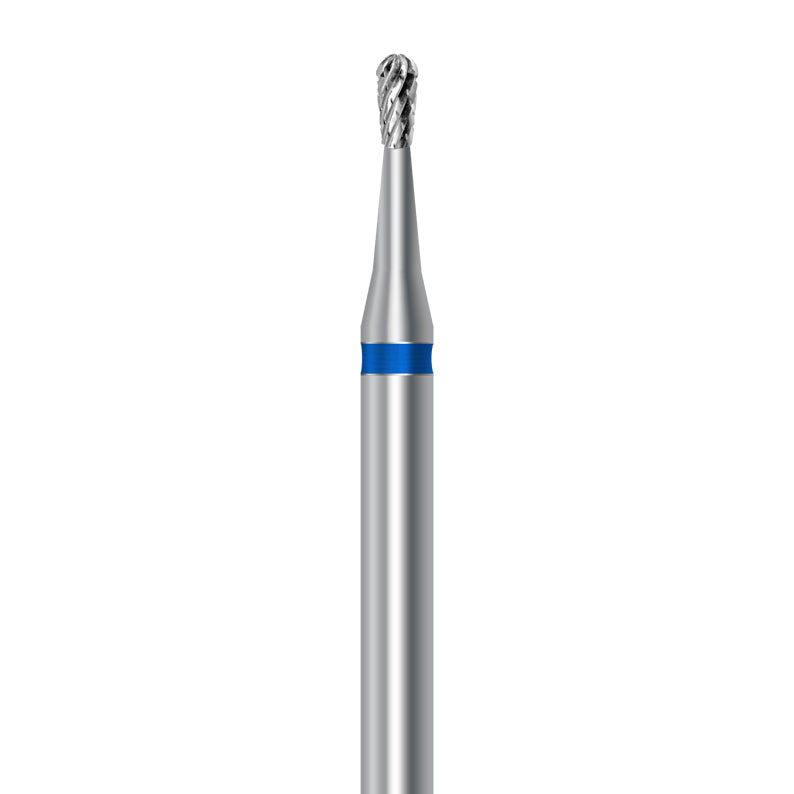

1642 C.77K.104.014 1.4 mm 3.0 mm 40,000 500.104.237.190.014

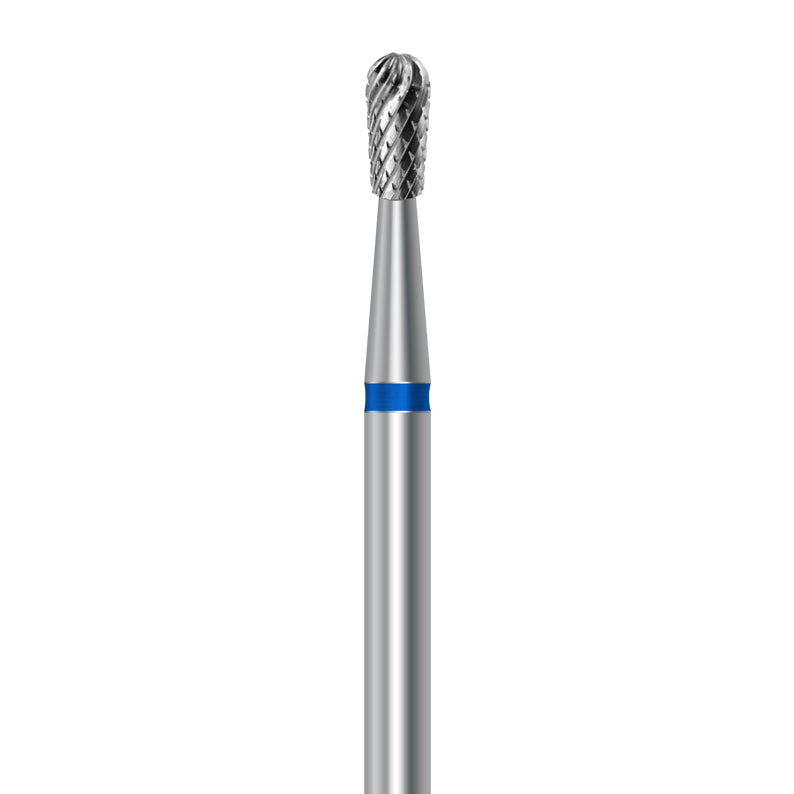

1823 C.77K.104.023 2.3 mm 4.0 mm 40,000 500.104.237.190.023

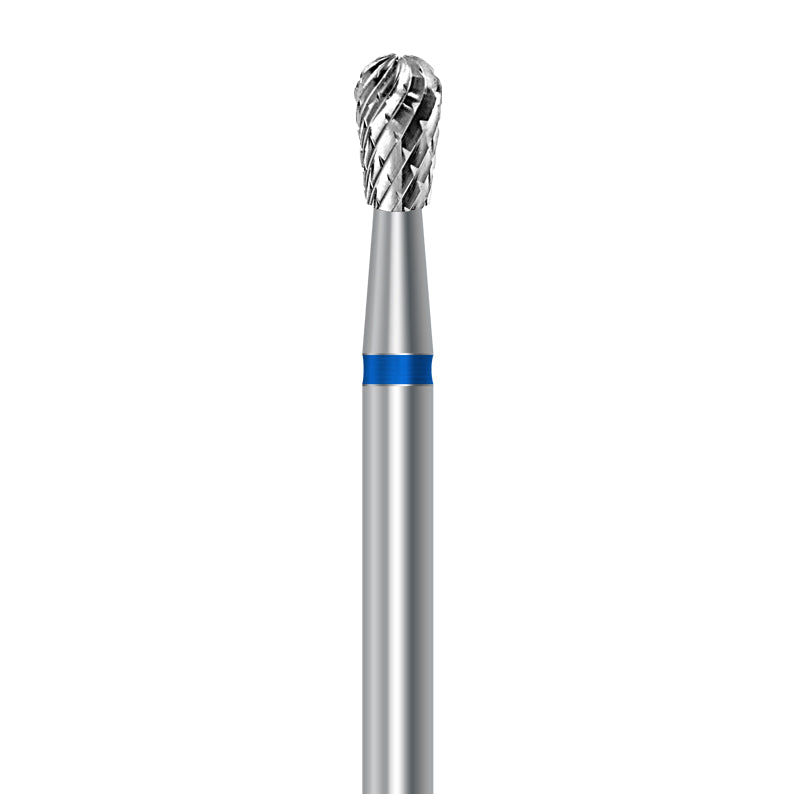

1830 C.77K.104.029 2.9 mm 5.0 mm 40,000 500.104.237.190.029

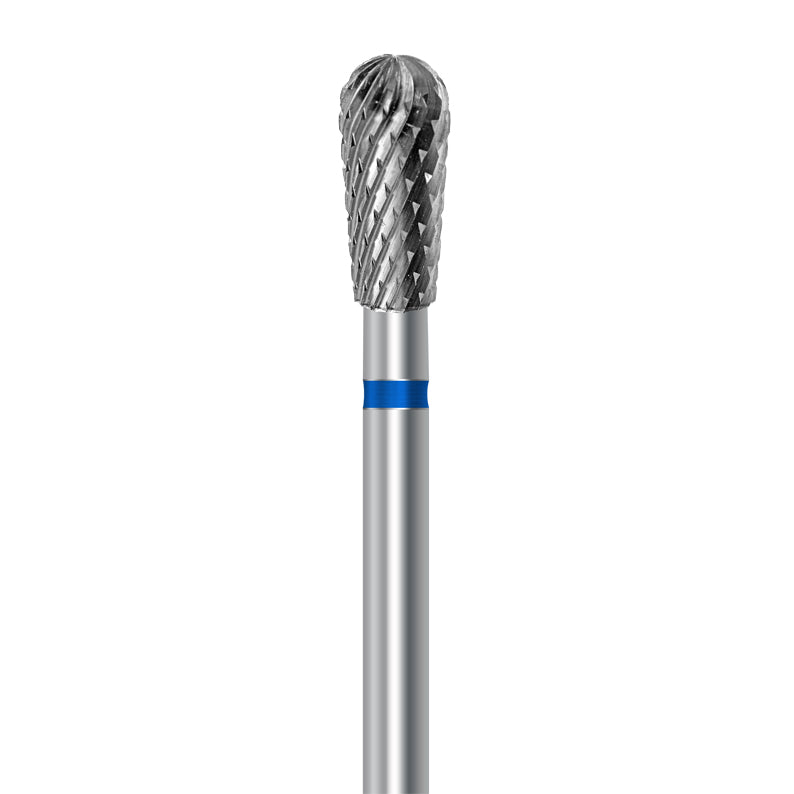

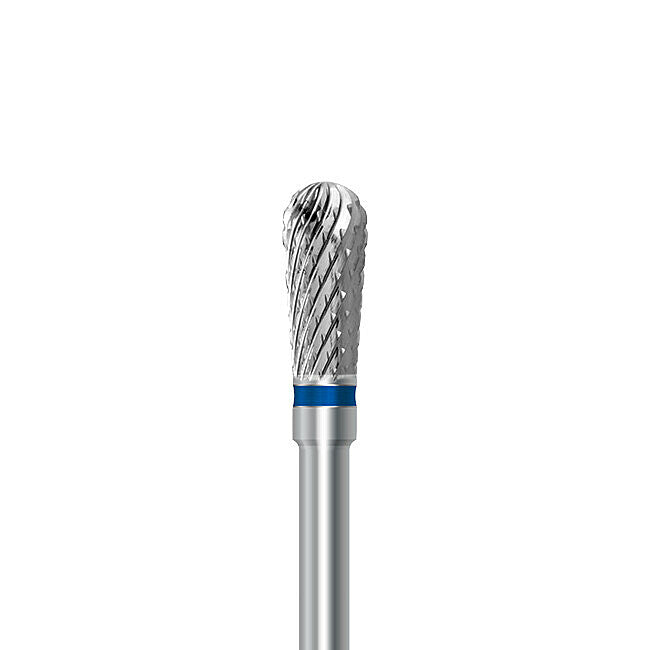

1819 C.77K.104.040 4.0 mm 9.0 mm 30,000 500.104.237.190.040

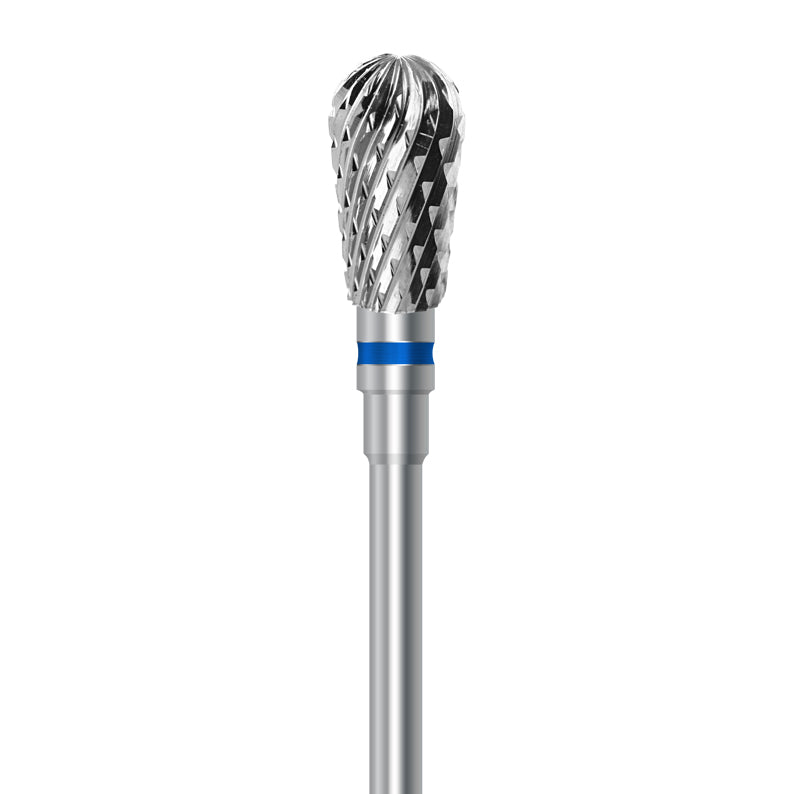

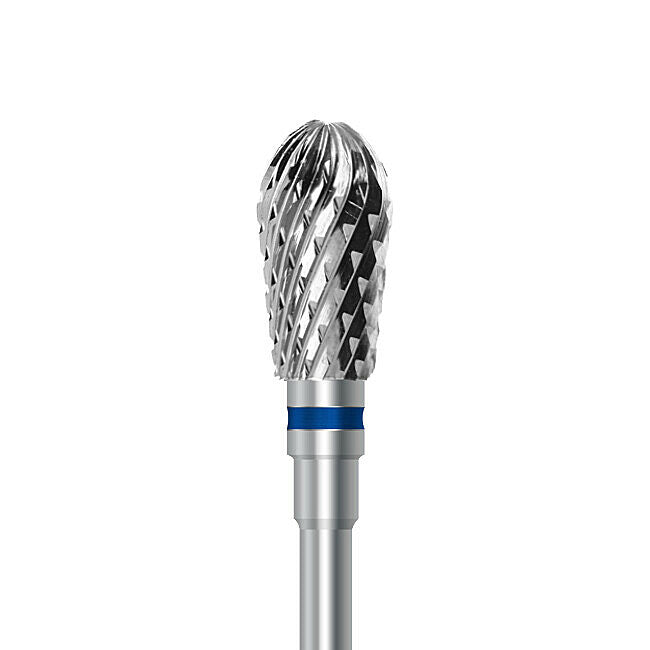

1825 C.77K.104.060 6.0 mm 11.0 mm 20,000 500.104.237.190.060
